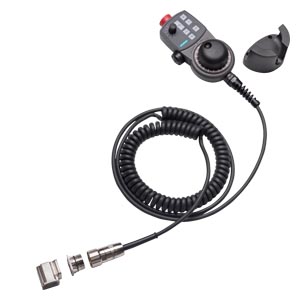

微型手持单元 6FX2007-1AD03 用于 SINUMERIK 配备 3.5m 螺旋状电缆 2 通道，紧急停止 2 通道，确认键，3 档位 带金属连接器 手轮带电磁制动机构
概述
该款便携式微型手持单元符合人体工学，具有坚固的金属接头，非常适合在车间里面调试和运行标准机床。
优势
轴的移动定位
易于对粗、中、细进给进行分级，便于快速、精确的增量定位
结构紧凑，坚固耐用
设计
急停功能是通过 4 线制连接在 2 个通道中实现的。
过 3 线制连接，在 2 个通道中实现 3 位置使能按钮
快速移动键和两个“±”键
一个用于在点动模式下移动轴的手轮
可以连接旋转开关以选择最多 5 个轴
适用于定制应用的 3 个功能键 – 用户可使用滑入式标签进行分配以进行标记
连接套件的接口（附件）
可选的直角插座可将电缆引出方向旋转 90°（附件）。角形接口仅能用于连接未预装配的连接套件。
使用集成式磁性夹或固定器（附件）进行安装
集成
微型手持单元可以用于：
SINUMERIK 828D
SINUMERIK 840D sl
SINUMERIK ONE
SINUMERIK MC
选型和订货数据（印刷版）
Description | Article No. |
|---|---|
Mini handheld unit for SINUMERIK 3-step enabling button | |
| 6FX2007-1AD03 |
| 6FX2007-1AD13 |
Accessories | |
Connection kit for Connection socket for self-assembly Version with metal connector | 6FX2006-1BG03 |
Connection kit for Connection socket wired up Version with metal connector | 6FX2006-1BG11 |
Connection kit for Version with metal connector | 6FX2006-1BG20 |
90° angle socket For connection kit, non-assembled | 6FX2006-1BG56 |
Holder For mini handheld units | 6FX2006-1BG70 |
技术规范
Article number |
| 6FX2007-1AD03 | 6FX2007-1AD13 | |
|---|---|---|---|---|
Product brand name | SINUMERIK | SINUMERIK | ||
product designation | Mini handheld unit | Mini handheld unit | ||
product feature | With coiled cable | With straight cable | ||
supply voltage at DC | V | 24 | 24 | |
supply voltage at DC | ||||
| V | 5 | 5 | |
| For emergency stop button, enabling buttons and switching signals | For emergency stop button, enabling buttons and switching signals | ||
design of the interface | RS422 | RS422 | ||
number of pulses per revolution maximum | 100 | 100 | ||
transmission link of the handheld unit to the NCU/PCU maximum | m (ft) | 25 (82.021) | 25 (82.021) | |
| When using the handwheel | When using the handwheel | ||
Protection class without shaft input | IP65 | IP65 | ||
environmental category acc. to IEC 60721-3-3 | Condensation and icing excluded. Low air temperature 0 °C (32 °F). | Condensation and icing excluded. Low air temperature 0 °C (32 °F). | ||
Relative humidity at 25 °C (77 °F), during | ||||
| % | 5 ... 95 | 5 ... 95 | |
| % | 5 ... 95 | 5 ... 95 | |
| % | 5 ... 95 | 5 ... 95 | |
Ambient temperature, during | ||||
| °C (°F) | -20 ... +60 (-4 ... +140) | -20 ... +60 (-4 ... +140) | |
| °C (°F) | -20 ... +60 (-4 ... +140) | -20 ... +60 (-4 ... +140) | |
| °C (°F) | 0 ... 55 (32 ... 131) | 0 ... 55 (32 ... 131) | |
width | mm (in) | 90 (3.54331) | 90 (3.54331) | |
height | mm (in) | 67 (2.6378) | 67 (2.6378) | |
depth | mm (in) | 180 (7.08661) | 180 (7.08661) | |
| With emergency stop button | With emergency stop button | ||
net weight | kg (lb) | 0.5 (1.10231) | 0.5 (1.10231) | |
