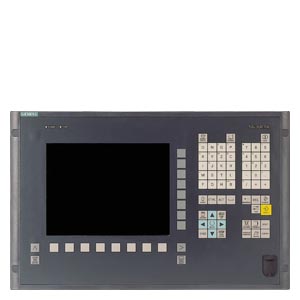

6FC5203-0AF00-0AA3 OP 010 10.4"
SINUMERIK 前操作面板 OP 010 10.4" TFT(640x 480)，LED 配有薄膜按键 附件（备件）： 6FC5248-0AF00-0AA2 SINUMERIK 前操作面板 无 LCD 单元，无触摸屏 适用于 SINUMERIK OP 010 6FC5203-0AF00-0AA3
概述
SINUMERIK OP 010 前操作面板带有一个带背光且分辨率为 640 × 480 像素（VGA）的 10.4" TFT 彩色显示屏，一个 62 键的薄膜按键盘，8 + 4 个水平软键，8 个垂直软键，键盘的布局经过优化调整，方便零件程序的编写。
操作员面板前端采用供货范围内包括的专用夹子后面固定。
优势
通过带有优化键盘的 10.4" TFT 显示屏，实现低成本的操作控制和监视
设计
SINUMERIK OP 010 操作员面板通过扁平带状电缆连接到 SINUMERIK PCU (SIMATIC IPC for SINUMERIK)。
接口：
1 个 USB 1.1 接口，A 型（前置）
2 根扁平带状电缆，用于连接 PCU
集成
SINUMERIK OP 010 操作员面板可用于：
SINUMERIK 840D sl：
NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PNSINUMERIK PCU (SIMATIC IPC for SINUMERIK)
SINUMERIK TCU 30.3
技术规范
Article number | 6FC5203-0AF00-0AA3 | |
|---|---|---|
Product brand name | SINUMERIK | |
product short term | OP 010 | |
product designation | Operator panel front | |
screen diagonal | 10.4 in () | |
design of the display | TFT color VGA with LED backlight | |
Screen resolution of the display | 640 pixel × 480 pixel | |
supply voltage at DC | 5 V | |
| Via PCU or TCU | |
Active power consumption | ||
| 10 W | |
| 16 W | |
Degree of protection | ||
| IP65 | |
| IP00 | |
environmental category acc. to IEC 60721-3-3 | Condensation and icing excluded. Low air temperature 0 °C (32 °F). | |
Relative humidity at 25 °C (77 °F), during | ||
| 5 ... 95 % | |
| 5 ... 95 % | |
| 5 ... 95 % | |
Ambient temperature, during | ||
| -20 ... +55 °C (-4 ... +131 °F) | |
| -20 ... +55 °C (-4 ... +131 °F) | |
| ||
| 0 ... 55 °C (32 ... 131 °F) | |
| 0 ... 55 °C (32 ... 131 °F) | |
width | 483 mm (19.01575 in) | |
height | 310 mm (12.20472 in) | |
depth | 30 mm (1.1811 in) | |
| Without USB protective cover on the front | |
installation depth | 20 mm (0.7874 in) | |
| Clearance + 10 mm (0.39 in) | |
Mounting surface | ||
| 450 mm (17.71654 in) | |
| 290 mm (11.41732 in) | |
net weight | 5 kg (11.02311 lb) | |
certificate of suitability | CE / cULus | |
