6FC5203-0AF04-0AA1 OP 010S
SINUMERIK 前操作面板 OP 010S,10.4" 配有机械按键
概述

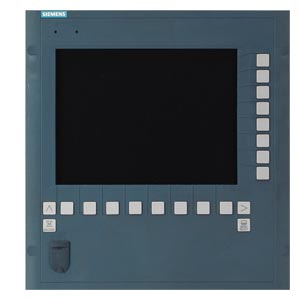

SINUMERIK OP 010S 操作员面板前端配备了一个 640 x 480 像素(VGA)的 10.4" TFT 彩色显示屏,有 8 + 4 个水平机械软键和 8 个垂直机械按键。
SINUMERIK KB 310C 全数控键盘适合用作用作输入键盘。
操作员面板前端采用供货范围内包括的专用夹子后面固定。
优势
节省空间的操作控制和监视
可选的 SINUMERIK KB 310C 全数控键盘操作舒适可靠
设计
SINUMERIK OP 010S 操作员面板通过扁平带状电缆连接到 SINUMERIK PCU (SIMATIC IPC for SINUMERIK)。
接口:
1 个 USB 1.1 接口,A 型(前置)
2 根扁平带状电缆,用于连接 PCU
集成
SINUMERIK OP 010S 操作面板前端可以用于:
SINUMERIK 840D sl:
NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PNSINUMERIK PCU (SIMATIC IPC for SINUMERIK)
SINUMERIK TCU 30.3
技术规范
Article number | 6FC5203-0AF04-0AA0 | |
---|---|---|
Product brand name | SINUMERIK | |
product short term | OP 010S | |
product designation | Operator panel front | |
screen diagonal | 10.4 in () | |
design of the display | TFT color VGA | |
Screen resolution of the display | 640 pixel × 480 pixel | |
supply voltage at DC | 5 V | |
| Via PCU or TCU | |
Active power consumption | ||
| 10 W | |
| 16 W | |
Degree of protection | ||
| IP54 | |
| IP00 | |
environmental category acc. to IEC 60721-3-3 | Condensation and icing excluded. Low air temperature 0 °C (32 °F). | |
Relative humidity at 25 °C (77 °F), during | ||
| 5 ... 95 % | |
| 5 ... 95 % | |
| 5 ... 95 % | |
Ambient temperature, during | ||
| -20 ... +55 °C (-4 ... +131 °F) | |
| -20 ... +55 °C (-4 ... +131 °F) | |
| ||
| 0 ... 45 °C (32 ... 113 °F) | |
| 0 ... 55 °C (32 ... 131 °F) | |
width | 310 mm (12.20472 in) | |
height | 330 mm (12.99213 in) | |
depth | 45 mm (1.77165 in) | |
| Without USB protective cover on the front | |
installation depth | 35 mm (1.37795 in) | |
| Clearance + 10 mm (0.39 in) | |
Mounting surface | ||
| 285 mm (11.22047 in) | |
| 304 mm (11.9685 in) | |
net weight | 5.5 kg (12.12542 lb) | |
certificate of suitability | CE / cULus |
