6FC5203-0AF01-0AA1 OP 010C
SINUMERIK 前操作面板 OP 010C;10.4" TFT(640x 480) 配有机械按键
概述

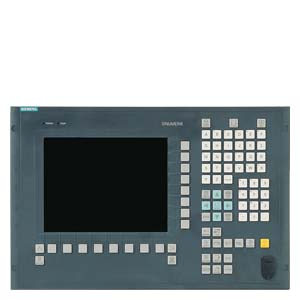

SINUMERIK OP 010C 操作员面板配有一个分辨率为 640x480 像素(VGA)的 10.4" TFT 彩色显示屏,具有一个 65 键的机械式键盘,带有 8+4 水平和 8 个垂直软键。
配有 6 个可更换键帽的热键,可根据机床进行调整。这些键帽可以用激光进行任意标记。
操作员面板前端采用供货范围内包括的专用夹子后面固定。
优势
集成键盘配有机械按键,操作控制和监视简单、可靠
集成 6 个热键,方便主要功能的快速选择
设计
SINUMERIK OP 010C 操作员面板通过扁平带状电缆连接到 SINUMERIK PCU (SIMATIC IPC for SINUMERIK)。
接口:
1 个 USB 1.1 接口,A 型(前置)
2 根扁平带状电缆,用于连接 PCU
集成
SINUMERIK OP 010C 操作员面板可用于:
SINUMERIK 840D sl:
NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PNSINUMERIK PCU 50.5 Windows 7
SINUMERIK TCU 30.3
技术规范
Article number | 6FC5203-0AF01-0AA0 | |
---|---|---|
Product brand name | SINUMERIK | |
product short term | OP 010C | |
product designation | Operator panel front | |
screen diagonal | 10.4 in () | |
design of the display | TFT color VGA | |
Screen resolution of the display | 640 pixel × 480 pixel | |
supply voltage at DC | 5 V | |
| Via PCU or TCU | |
Active power consumption | ||
| 10 W | |
| 16 W | |
Degree of protection | ||
| IP54 | |
| IP00 | |
environmental category acc. to IEC 60721-3-3 | Condensation and icing excluded. Low air temperature 0 °C (32 °F). | |
Relative humidity at 25 °C (77 °F), during | ||
| 5 ... 95 % | |
| 5 ... 95 % | |
| 5 ... 95 % | |
Ambient temperature, during | ||
| -20 ... +55 °C (-4 ... +131 °F) | |
| -20 ... +55 °C (-4 ... +131 °F) | |
| ||
| 0 ... 45 °C (32 ... 113 °F) | |
| 0 ... 55 °C (32 ... 131 °F) | |
width | 483 mm (19.01575 in) | |
height | 310 mm (12.20472 in) | |
depth | 30 mm (1.1811 in) | |
| Without USB protective cover on the front | |
installation depth | 20 mm (0.7874 in) | |
| Clearance + 10 mm (0.39 in) | |
Mounting surface | ||
| 450 mm (17.71654 in) | |
| 290 mm (11.41732 in) | |
net weight | 5 kg (11.02311 lb) | |
certificate of suitability | CE / cULus |
