6FC5203-0AF05-0AB1 OP 015A

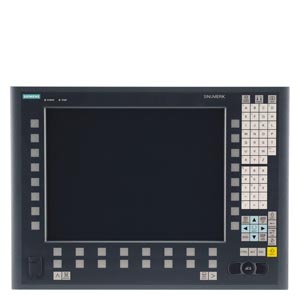

SINUMERIK 前操作面板 OP 015A,15" TFT(1024 X 768) LED 背景照明 配有薄膜按键和鼠标
概述
SINUMERIK OP 015A 操作员面板配有带背光且分辨率为 1024 × 768 像素 (XGA) 的 15" TFT 彩色显示屏,其配有一个 62 键薄膜按键盘以及 2 排水平软键(每排 8 + 2 个键)和 2 排垂直软键(每排 8 个键)和以及一个集成式鼠标。2 x 8 个垂直软键可用作 PLC 的直接按键。
操作员面板前端采用供货范围内包括的专用夹子后面固定。
优势
15" TFT 彩色显示屏,操作控制和监视非常方便
集成了鼠标和键盘,操作简单
设计
SINUMERIK OP 015A 操作员面板通过电缆连接到 SINUMERIK PCU (SIMATIC IPC for SINUMERIK)。
接口:
1 个 USB 1.1 接口,A 型(前置)
2 根电缆,用于连接 SINUMERIK PCU
集成
SINUMERIK OP 015A 操作员面板可用于:
SINUMERIK 840D sl:
NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PNSINUMERIK PCU (SIMATIC IPC for SINUMERIK)
SINUMERIK TCU 30.3
技术规范
Article number | 6FC5203-0AF05-0AB1 | |
---|---|---|
Product brand name | SINUMERIK | |
product short term | OP 015A | |
product designation | Operator panel front | |
screen diagonal | 15 in () | |
design of the display | TFT color XGA with LED backlight | |
Screen resolution of the display | 1024 pixel × 768 pixel | |
supply voltage at DC | 5 V | |
| Via PCU or TCU | |
Active power consumption | ||
| 15 W | |
| 25 W | |
Degree of protection | ||
| IP65 | |
| IP00 | |
environmental category acc. to IEC 60721-3-3 | Condensation and icing excluded. Low air temperature 0 °C (32 °F). | |
Relative humidity at 25 °C (77 °F), during | ||
| 5 ... 95 % | |
| 5 ... 95 % | |
| 5 ... 95 % | |
Ambient temperature, during | ||
| -20 ... +55 °C (-4 ... +131 °F) | |
| -20 ... +55 °C (-4 ... +131 °F) | |
| ||
| 0 ... 45 °C (32 ... 113 °F) | |
| 0 ... 55 °C (32 ... 131 °F) | |
width | 483 mm (19.01575 in) | |
height | 355 mm (13.97638 in) | |
depth | 53 mm (2.08661 in) | |
| Without USB protective cover on the front | |
installation depth | 42 mm (1.65354 in) | |
| Clearance + 10 mm (0.39 in) | |
Mounting surface | ||
| 450 mm (17.71654 in) | |
| 335 mm (13.18898 in) | |
net weight | 8.4 kg (18.51883 lb) | |
certificate of suitability | CE / cULus |
