6FC5403-0AA21-0AA1 HT 10
SINUMERIK 手持终端 HT 10 手动控制装置 带 10" 多点触控显示屏 用于 SINUMERIK CNC
概述

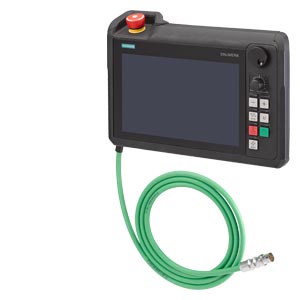

移动手持终端 SINUMERIK HT 10 是SINUMERIK blackline plus 设计中的新型多功能手持终端。这款终端操作简便,通过其符合人体工程学的轻质设计和 10" 多点触控显示屏实现既定用途。
SINUMERIK HT 10 可移动手持终端将操作员面板和机床控制面板的功能组合在一个设备中。因此,这款终端可用于设置、操作和监视机床。由于基于瘦客户机原理,SINUMERIK HT 10 既可用作主要操作员面板,也可用作辅助操作员面板。屏幕显示内容通过工业以太网从 SINUMERIK NCU 或 SINUMERIK PCU 传输到手持终端。
The SINUMERIK HT 10 针对机床市场的需求而优化设计。
优势
操作控制和监视的移动性
符合人体工程学设计,重量轻便,可以靠左前臂支撑
多点触控操作和触控屏手势控制,也可在操作员戴手套时操作
固定操作员面板(如显示管理器)的集成操作原理
自动急停超控件与接线盒 “SIMATIC PN advanced” 结合使用,在操作过程中可以简单地插拔
提供可选附件的壁式固定器:HT 10 可以安全保持,并可以壁式固定器固定操作员面板方式操作。
设计
10.1" TFT 多点触控显示屏
旋转倍率开关(19位置)
手轮(仅适用于 SINUMERIK HT 10 6FC5403-0AA21-1AA1)
7 个机械功能键,通过按键提供 LED 反馈
触摸按键:屏幕中预定义保留区域用户定义的按键功能,可通过 U 键进行选择
不发光型急停按钮(双通道)
带使能按钮(3步)和 USB 接口的手柄
集成
SINUMERIK HT 10 手持终端可用于:
SINUMERIK ONE
NCU 1750/NCU 1760 (SW V6.13)SINUMERIK 840D sl
NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PN (SW V4.93)SINUMERIK PCU
SINUMERIK 适用的 SIMATIC IPC,带 PCU base software Windows 10 (SW V13.0)
组态

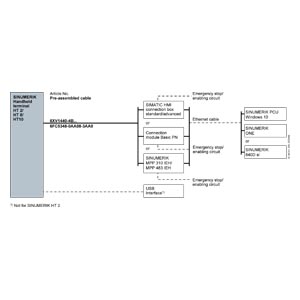

Connection overview for SINUMERIK HT 2/HT 8
技术规范
Article number |
| 6FC5403-0AA21-0AA1 | 6FC5403-0AA21-1AA1 | |
---|---|---|---|---|
Product brand name | SINUMERIK | SINUMERIK | ||
product short term | HT 10 | HT 10 | ||
product designation | Handheld terminal | Handheld terminal | ||
product feature | Without handwheel | With handwheel | ||
screen diagonal | in | 10.1 | 10.1 | |
design of the display | TFT color display | TFT color display | ||
Screen resolution of the display | pixel | 1280 × 800 | 1280 × 800 | |
supply voltage at DC | V | 24 | 24 | |
transmission link maximum | m (ft) | 25 (82.021) | 25 (82.021) | |
Protection class without shaft input | IP65 | IP65 | ||
environmental category acc. to IEC 60721-3-3 | Condensation, ice formation, dripping water, spraying water, splashing water and water jets are not permitted | Condensation, ice formation, dripping water, spraying water, splashing water and water jets are not permitted | ||
Relative humidity at 25 °C (77 °F), during | ||||
| % | 5 ... 95 | 5 ... 95 | |
| % | 5 ... 95 | 5 ... 95 | |
| % | 5 ... 95 | 5 ... 95 | |
Ambient temperature, during | ||||
| °C (°F) | -20 ... +55 (-4 ... +131) | -20 ... +55 (-4 ... +131) | |
| °C (°F) | -20 ... +55 (-4 ... +131) | -20 ... +55 (-4 ... +131) | |
| °C (°F) | 0 ... 45 (32 ... 113) | 0 ... 45 (32 ... 113) | |
width | mm (in) | 327 (12.87402) | 327 (12.87402) | |
height | mm (in) | 102 (4.01575) | 102 (4.01575) | |
depth | mm (in) | 232 (9.13386) | 232 (9.13386) | |
net weight | kg (lb) | 1.5 (3.30693) | 1.5 (3.30693) | |
| Without connecting cable | Without connecting cable | ||
certificate of suitability | CE, cULus, EAC, KC, RCM | CE, cULus, EAC, KC, RCM |
